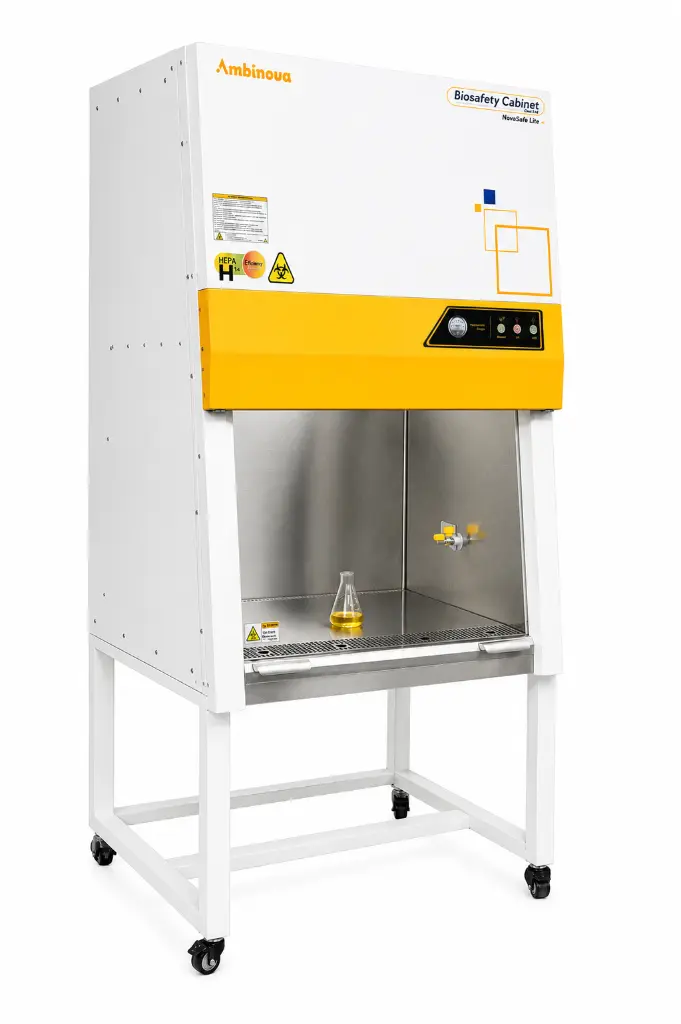

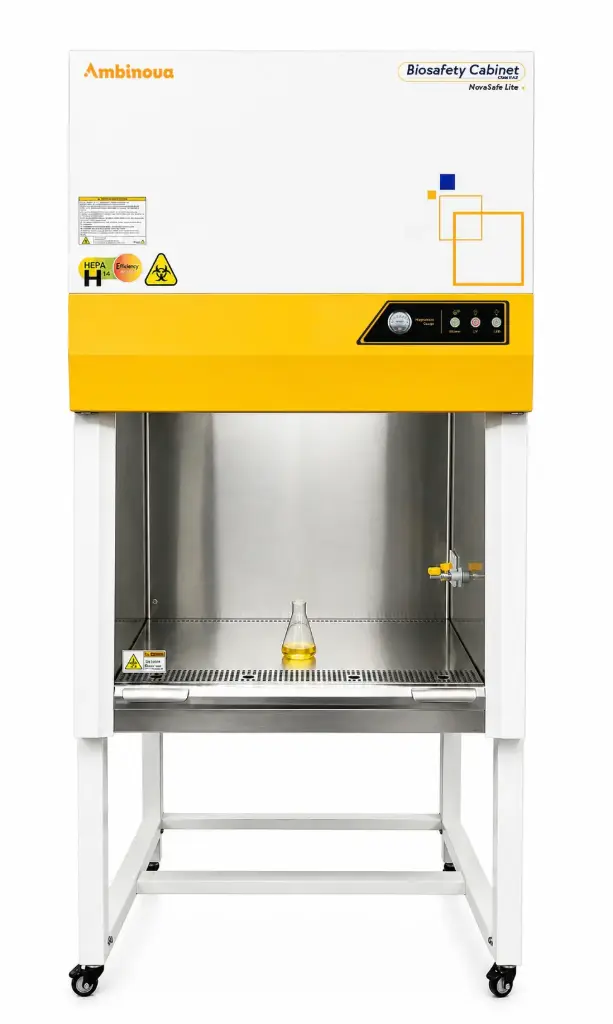

Biosafety Cabinet Class II A2 NovaSafe Lite 3 Ft (Model - 440315)

Biosafety Cabinet Class II A2 NovaSafe Lite 3 Ft (Model - 440315)

Model - 440315 , HSN- 84198990

* Stand is not Incuded
HSN - 84198990

MOC Internal Body
- Stainless Steel 304
MOC External Body
- Powder Coated Steel
Size
- 3ft

This combination does not exist.

Request for Price

MOC Internal Body: Stainless Steel 304

MOC External Body: Powder Coated Steel

Size: 3ft

Brochure/Catalogue:

Description

NovaSafe Lite Precision Protection. Smart Performance. Essential Value. Engineered for modern laboratories, the Novasafe Lite delivers reliable Class II Type A2 biosafety protection with an optimal balance of performance, efficiency, and affordability. Designed using advanced airflow engineering and high-efficiency HEPA filtration, it ensures maximum operator safety, product integrity, and environmental protection. With a focus on simplicity, energy efficiency, and robust construction, Novasafe Lite is ideal for laboratories seeking trusted biosafety performance without unnecessary complexity. Powered by intelligent control systems and stable AC blower technology, it maintains consistent airflow conditions critical for contamination-free operations.

Features

Energy-Efficient AC Blower System

The Novasafe Lite utilizes a precision-engineered AC blower system to maintain consistent airflow velocity and containment integrity. Built for durability and continuous operation, it offers reliable performance with optimized energy usage, ensuring safe and stable working conditions in demanding laboratory environments.

Reliable Manual Push Switch System

Durable push-button controls provide simple, dependable operation, ensuring quick response and consistent performance for everyday laboratory use.

Quick-Access HEPA Filtration System

Designed for service efficiency, the front-access HEPA f ilter system enables single-person filter replacement without specialized tools, reducing downtime and maintenance complexity.

Paper Catch Protection System

A protective screen within the rear return plenum prevents wipes, tissues, and debris from entering the blower assembly, enhancing system reliability and longevity.

Double-Wall Negative Pressure Plenum

A fully enclosed double-wall plenum design surrounds contaminated zones under negative pressure, eliminating leakage risks from filter seals, gaskets, or structural joints—ensuring maximum biosafety assurance.

Factory-Calibrated Airflow System

Airflow velocities are preset and calibrated during manufacturing to comply with regulatory standards, ensuring consistent inflow and downflow performance without user adjustment errors.

Air Intake System

The surround air intake grille design eliminates dead zones by capturing contaminated air across the entire work opening, maintaining uniform containment and operator protection.

Integrated Electrical Safety

Internal electrical outlets are strategically positioned and protected to minimize exposure risks and ensure safe operation within the work zone.

Ergonomic Operator Design

10 Deg Angled front sash for optimal visibility . Narrow front grille to maximize workspace . Frameless sash for unobstructed access . SS 304 armrest ( Optional ) for operator comfort and proper airflow discipline .

Designed to reduce fatigue and improve workflow efficiency.

High-Efficiency HEPA Filtration (H14)

Equipped with Class H14 HEPA filters, delivering >99.995% efficiency at 0.3 µm, ensuring superior protection for personal, product, and environment.

Additional Features

Robust External Component Design

Critical components such as lighting systems, electrical modules, and manual switches are mounted outside the contaminated airflow path, enabling safe servicing without decontamination procedures.Automatic Shut-Down System Automatically turns off the UV, blower and lighting when the sash is fully closed, enhancing safety, conserving energy, and ensuring proper operation. Ensures operator safety and correct usage at all times.

Automatic Shut-Down System

Automatically turns off the UV, blower and lighting when the sash is fully closed, enhancing safety, conserving energy, and ensuring proper operation. Ensures operator safety and correct usage at all times.

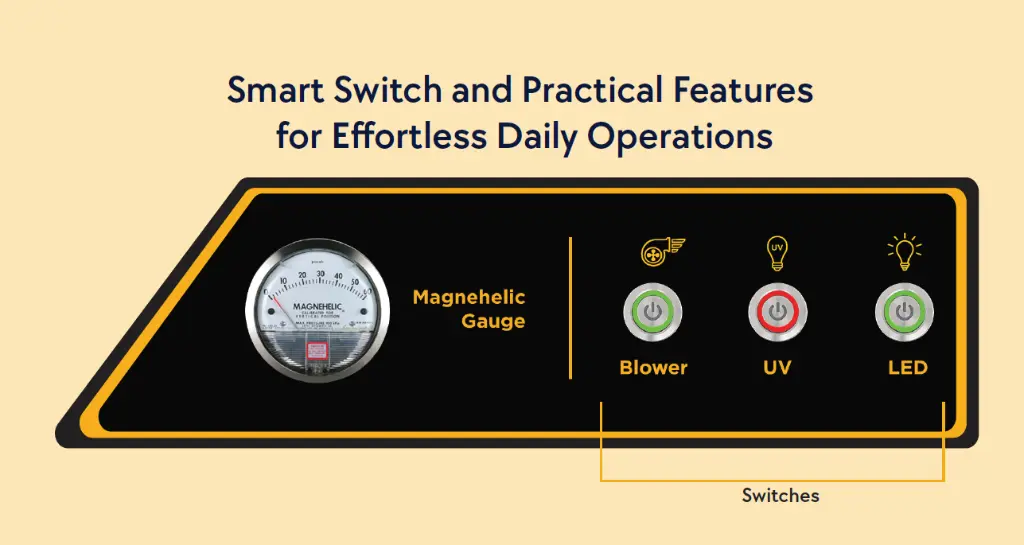

Smart Switch and Practical Features for Effortless Daily Operations

HEPA Filtration System

The Novasafe Lite™ incorporates advanced H14 HEPA filtration technology to deliver high-performance protection for personnel, product, and environment. These high-efficiency filters are designed to capture ≥99.995% of particles at 0.3 microns, ensuring a clean and contamination-free working environment. Each filter features a Special seal design at the air inlet interface, providing a leak-proof seal with the housing system and eliminating bypass risk. The robust aluminum frame construction prevents deformation or swelling, ensuring long-term structural stability. For optimized airflow performance, the filters are designed without aluminum separators, allowing uniform air distribution and reduced airflow resistance. The system also supports front-access filter replacement, enabling quick and safe maintenance by a single operator, minimizing downtime and service complexity.

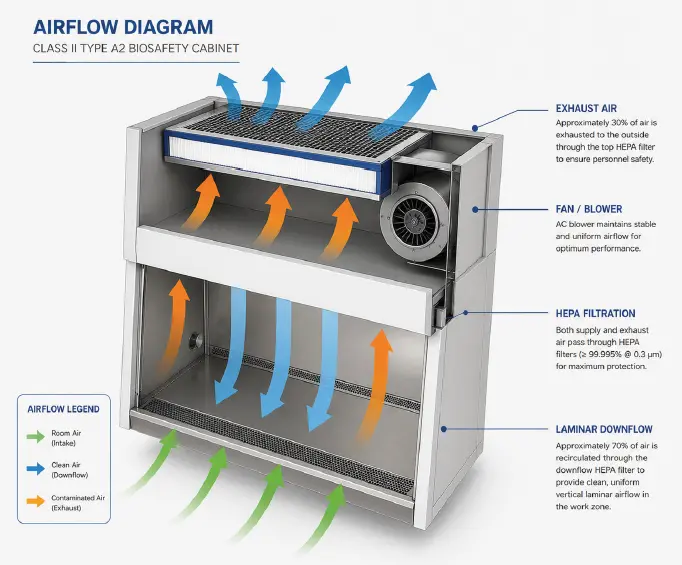

Airflow Stability & Energy Optimization

The Novasafe Lite is engineered with a precision-balanced airflow system, ensuring uniform downflow and exhaust distribution across the work area.

Key Features

Optimized Air Distribution

Carefully designed plenum and diffuser system ensures even airflow across the entire work surface, enhancing containment performance.

Extended Filter Life

Uniform airflow loading reduces localized stress on filters, helping to prolong HEPA filter lifespan and maintain efficiency over time.

Stable Airflow Performance

The blower system is tuned to maintain consistent inflow and downflow velocities, ensuring compliance with biosafety standards even under varying operating conditions.

Technical Specifications

Classification	Class	II
	Type	A2
Dimensions	Exterior Dimensions without stand W x H x D (mm)	1056 x 1540 x 820
	Exterior Dimensions with stand W x H x D (mm)	1056 x 2260 x 820
	Interior Dimensions W x H x D (mm)	900 x 700 x 630
Electrical Data	Voltage	220V
	Frequency	50Hz
	Energy Consumption (Watt)	200
Filter	Supply Filter	H14
	Efficiency	≥99.995%
	Exhaust Filter	H14
	Efficiency	≥99.995%
Certification		NA
Ergonomics & Utilities	LED Light	800lux
	UV Light	254nm
	Gas Valves	Yes
	Pass-Through Utility ports	NA
	Electrical Switch & Socket	16Amp (1 nos) IN type
Display	LCD	NA
Feature	Operation Type	Manual Switch
	UV Hour Meter	NA
	Velocity Sensor	NA
	Sash Opening Sensor	NA
	Pressure Sensor	Magnehelic Gauge ( Manual )
	Hepa Life Indication	Yes
	UV Life Indication	Yes
Work Aperture	Sash Opening Hight	8”
	Sound Level	<65dB
	Sash Material	Toughend Glass
	Sash Thickness	6mm
Air Circulation	Exhaust Volume Percentage	30
	Recirculation Volume Percentage	70
Air Velocity	Downflow Velocity	0.25 to 0.40m/s
	Inflow Velocity	0.51 to 0.55m/s
Blower	Blower Type	AC
MOC	Internal work Surface	SS304
	Internal wall	Powder Coated Steel
	External body	Powder Coated Steel
Stand	Type	Manual Stand with Custor wheel / Adjustable foot
	MOC	Powder Coated Steel / SS304
