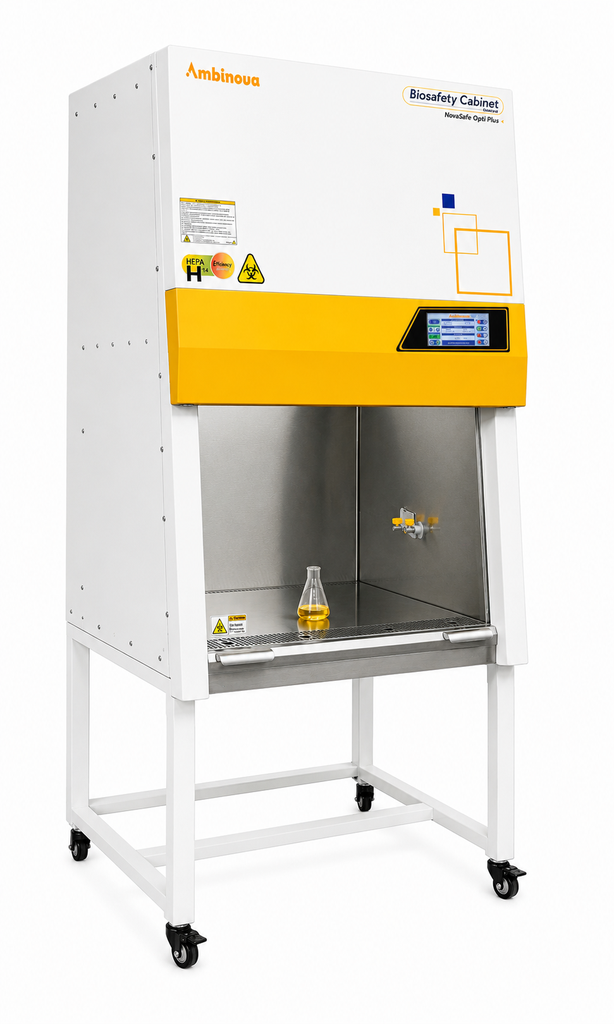

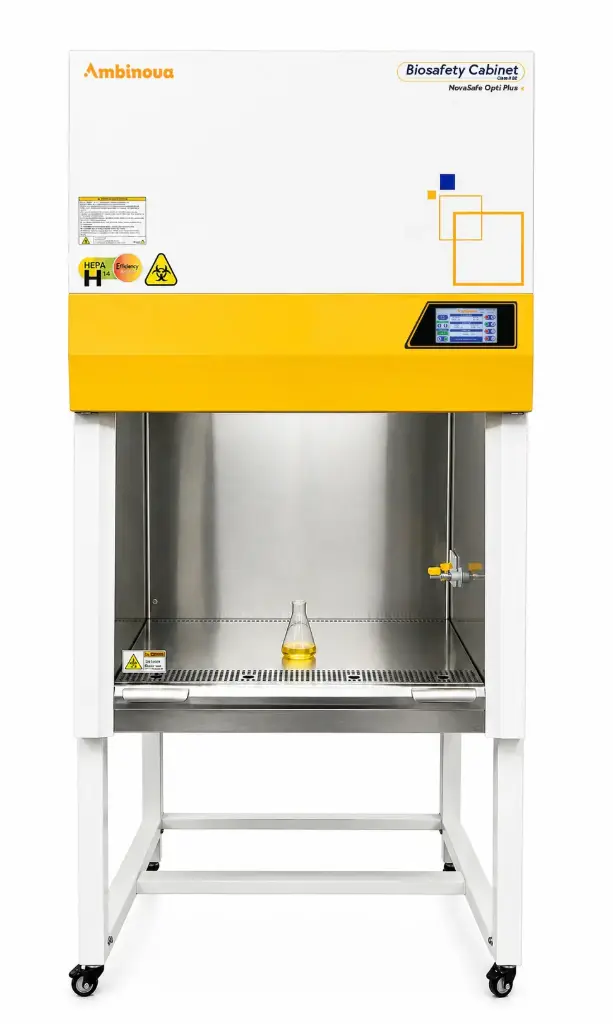

Biosafety Cabinet Class II B2 NovaSafe Opti Plus 3 Ft (Model - 440416)

Novasafe Opti Plus Class II B2 Side.jpeg

WhatsApp Image 2026-05-21 at 12.43.49 PM.webp

Biosafety Cabinet Class II B2 NovaSafe Opti Plus 3 Ft (Model - 440416)

Model - 440416 , HSN- 84198990

* Stand is not Incuded
HSN - 84198990

MOC Internal Body
- Stainless Steel 304
MOC External Body
- Powder Coated Steel
Size
- 3ft

This combination does not exist.

Request for Price

MOC Internal Body: Stainless Steel 304

MOC External Body: Powder Coated Steel

Size: 3ft

Brochure/Catalogue:

Description

NovaSafe Opti Plus

Precision Protection

Smart Performance

Essential Value.

Engineered for modern laboratories, the Novasafe Opti Plus delivers reliable Class II Type A2 biosafety protection with an optimal balance of performance, efficiency, and affordability. Designed using advanced airflow engineering and high-efficiency HEPA filtration, it ensures maximum operator safety, product integrity, and environmental protection. With a focus on simplicity, energy efficiency, and robust construction, Novasafe Opti Plus is ideal for laboratories seeking trusted biosafety performance without unnecessary complexity. Powered by intelligent control systems and stable AC blower technology, it maintains consistent airflow conditions critical for contamination-free operations.

Features

Energy-Efficient AC Blower System

The Novasafe Opti Plus Series features a precision-engineered AC blower system for stable airflow, reliable containment, and energy-efficient performance in demanding laboratory environments.

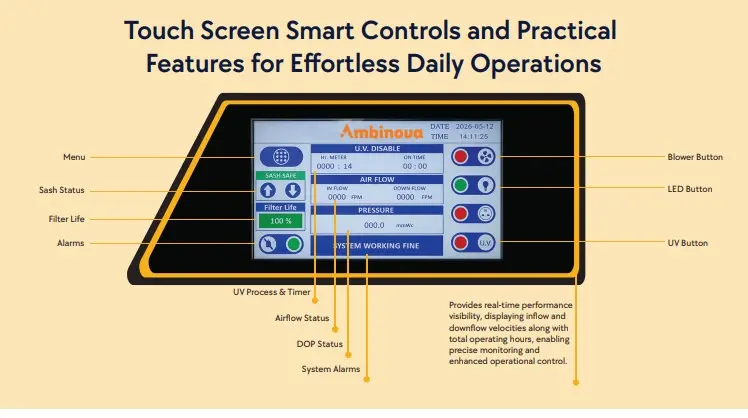

Advanced Touchscreen Micro PLC Control System

Featuring a 7-inch touchscreen and micro PLC control, the system enables intuitive operation, multiple working modes, and real-time monitoring with integrated alarms and status indicators on a single interface.

Quick-Access HEPA Filtration System

Designed for service efficiency, the front-access HEPA filter system enables single-person filter replacement without specialized tools, reducing downtime and maintenance complexity.

Real-Time Downflow Monitoring System

An advanced downflow velocity sensor provides continuous real-time airflow monitoring, ensuring consistent laminar flow, enhanced protection, and reliable performance for critical laboratory applications.

Automatic Downflow Control System

The Novasafe Opti Plus features intelligent automatic airflow control for consistent downflow velocity, ensuring stable laminar airflow, reliable containment, and continued biosafety compliance.

Paper Catch Protection System

A protective screen within the rear return plenum prevents wipes, tissues, and debris from entering the blower assembly, enhancing system reliability and longevity.

Pass-Through Utility Ports

Two (2) 70 mm ports on sidewalls allow safe routing of cables and tubing without compromising airflow integrity or containment performance.

Double-Wall Negative Pressure Plenum

A fully enclosed double-wall plenum design surrounds contaminated zones under negative pressure, eliminating leakage risks from filter seals, gaskets, or structural joints—ensuring maximum biosafety assurance.

Factory-Calibrated Airflow System

Airflow velocities are preset and calibrated during manufacturing to comply with regulatory standards, ensuring consistent inflow and downflow performance without user adjustment errors.

Full-Perimeter Air Intake System

The surround air intake grille design eliminates dead zones by capturing contaminated air across the entire work opening, maintaining uniform containment and operator protection.

Integrated Electrical Safety

Internal electrical outlets are strategically positioned and protected to minimize exposure risks and ensure safe operation within the work zone.

Heavy-Duty Stainless Steel Interior

Constructed with a one-piece SS 304 liner featuring coved corners, the cabinet ensures easy cleaning, corrosion resistance, and long-term durability.

Ergonomic Operator Design

10 Deg Angled front sash for optimal visibility .

Narrow front grille to maximize workspace .

Frameless sash for unobstructed access .

SS 304 armrest ( Optional ) for operator comfort and proper airflow discipline .

Designed to reduce fatigue and improve workflow efficiency.

High-Efficiency HEPA Filtration (H14)

Equipped with Class H14 HEPA filters, delivering >99.995% efficiency at 0.3 µm, ensuring superior protection for personnel, product, and environment.

Three-Position Smart Sash System

This features an intelligent three-position sash system designed to enhance safety, compliance, and operational control :

Sash Closed Mode : Fully closed position for secure shutdown, enabling safe UV operation and energy conservation.

Sash Safe Position (8-inch / 200 mm) : Factory-defined working sash opening height ensuring optimal inflow velocity and certified containment performance.

Sash Unsafe Position Alert : Any deviation from the safe height triggers a visual and/or audible alarm, helping maintain proper operating conditions at all times.

Additional Features

Robust External Component Design

Critical components such as lighting systems, electrical modules, and manual switches are mounted outside the contaminated airflow path, enabling safe servicing without decontamination procedures.Automatic Shut-Down System Automatically turns off the UV, blower and lighting when the sash is fully closed, enhancing safety, conserving energy, and ensuring proper operation. Ensures operator safety and correct usage at all times.

International Compliance

Designed in accordance with EN 12469 standards, ensuring globally recognized levels of performance, containment, and safety.

Automatic Safety Interlock System

Activates blower and lighting when sash is opened.

Automatically disables UV during operation.

Restores UV function when sash is fully closed.

Ensures operator safety and correct usage at all times.

HEPA Filtration System

The Novasafe Opti uses advanced H14 HEPA filtration to provide high-level protection for personnel, products, and the environment. It captures ≥99.995% of particles at 0.3 microns, ensuring a clean workspace. The special seal design prevents air leakage, while the durable aluminum frame maintains long-term stability. Its separator-free design improves airflow, and front-access filter replacement allows quick, safe, single-operator maintenance with minimal downtime.

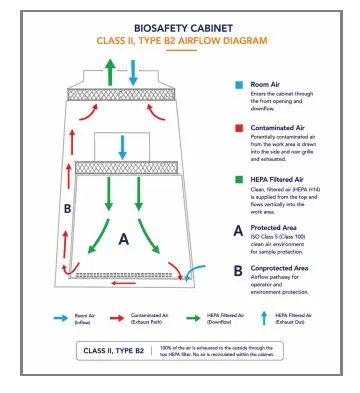

Airflow Stability & Energy Optimization

The Novasafe Lite is engineered with a precision-balanced airflow system, ensuring uniform downflow and exhaust distribution across the work area.

Key Features

Optimized Air Distribution

Carefully designed plenum and diffuser system ensures even airflow across the entire work surface, enhancing containment performance.

Extended Filter Life

Uniform airflow loading reduces localized stress on filters, helping to prolong HEPA filter lifespan and maintain efficiency over time.

Stable Airflow Performance

The blower system is tuned to maintain consistent inflow and downflow velocities, ensuring compliance with biosafety standards even under varying operating conditions.

Energy-Conscious Operation

The system is designed for efficient airflow generation with controlled power consumption, delivering a balance between performance and operating cost.

Technical Specifications

Classification	Class	II
	Type	B2
Dimensions	Exterior Dimensions without stand W x H x D (mm)	1061 x 1601 x 884
	Exterior Dimensions with stand W x H x D (mm)	1061 x 2321 x 884
	Interior Dimensions W x H x D (mm)	900 x 700 x 630
Electrical Data	Voltage	220V
	Frequency	50Hz
	Energy Consumption (Watt)	506
Filter	Supply Filter	H14
	Efficiency	≥99.995%
	Exhaust Filter	H14
	Efficiency	≥99.995%
Certification	CE/EN 12469/ISO 14644/IEC 60601
Ergonomics & Utilities	LED Light	800lux
	UV Light	254nm
	Gas Valves	Yes
	Pass-Through Utility ports	70mm (2 nos)
	Electrical Switch & Socket	16Amp (1 nos) IN type
Display		7 inch Touch Screen Display
Feature	Operation Type	PLC
	UV Hour Meter	Yes
	Velocity Sensor	Yes
	Sash Opening Sensor	Yes
	Pressure Sensor	Digital pressure sensor
	Hepa Life Indication	Yes
	UV Life Indication	Yes
Work Aperture	Sash Opening Hight	8”
	Sound Level	<60dB
	Sash Material	Toughend Glass
	Sash Thickness	6mm
Air Circulation	Exhaust Volume Percentage	100
	Recirculation Volume Percentage	0
Air Velocity	Downflow Velocity	0.25 to 0.40m/s
	Inflow Velocity	0.51m/s
Blower	Blower Type	AC
MOC	Internal work Surface	SS304
	Internal wall	Powder Coated Steel
	External body	Powder Coated Steel
Stand	Type	Manual Stand with Custor wheel / Adjustable foot
	MOC	Powder Coated Steel / SS304
