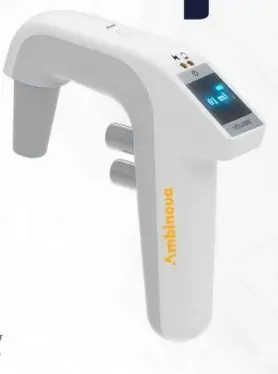

Electronic Pipette Controller

Precision, Control & Comfort Redefined

The Electronic Pipette Controller is an advanced electronic pipette filling device engineered to deliver unmatched precision, superior control, and exceptional user comfort in modern laboratory environments. Integrated with sensor-based speed detection, Force Touch Technology, and a high-performance solenoid valve, this next-generation instrument ensures remarkably smooth and highly accurate liquid handling across diverse applications.

Designed for researchers who demand both reliability and efficiency, the Electronic Pipette Controller offers a highly responsive pipetting experience. Its intelligent control system continuously interprets finger pressure to regulate aspiration and dispensing speeds with exceptional accuracy-making it ideal for both delicate media transfers and rapid, high-volume dispensing. This reduces user fatigue while maximizing laboratory workflow efficiency.

Design features

Sensor-Based Speed Detection

Automatically adjusts motor control for smooth, accurate aspiration and dispensing.

Force Touch Pressure Control

Applies real-time speed modulation based on finger pressure for intuitive operation.

High-Performance Solenoid Valve

Delivers consistent, high-precision flow regulation during aspiration and dispensing.

Universal Compatibility

Supports all standard 0.1-100 mL glass or plastic serological pipettes.

PTFE Hydrophobic Filter (0.2 μm)

Prevents aerosol contamination and accidental liquid entry, preserving device safety and longevity.

Universal Silicone Adapter with Internal Knurling

Securely grips 1-100 mL pipettes

Prevents slippage during heavy-duty operations

Durable, chemical-resistant design

Large Tempered OLED Display

Crisp monochrome display.

Resistant to impacts, scratches, and chemical spills.

Provides clear visibility of modes and settings.

Unique Gravity Dispense Mode

Light plunger press activates valve-only dispensing.

Motor stays off for gentle, gravity-based operations.

Ideal for sensitive cell culture or IVF applications.

Programmed Pipette Selection

Users can select pipette size from: 1 mL, 2 mL, 5 mL, 10 mL, 25 mL, 50 mL, 100 mL

→ Automatically optimizes fill & dispense speeds.

Force Touch Technology

Light press :- slow, controlled handling

Medium press: moderate flow

Full press:- rapid aspiration & dispensing

> It is fully autoclavable at 121°C, 15 psi for 10-15 minutes.

Supports sterile workflows in IVF, microbiology, and cell culture labs.

TECHNICAL SPECIFICATIONS

Pipette Capacity Selection : The user may select 1, 2, 5, 10, 25, 50, or 100 mL.

Speed Control : The speeds of aspiration and dispensing can be controlled by adjusting the applied pressure on the plunger buttons. A 25-mL pipette can be filled within 3 sec.

Max Speed : Pipette capacity Max Speed: 1 ml-0.3 ml/sec 2 ml-0.6 ml/sec 5 ml-1.5 ml/sec 10 ml-3 ml/sec 25 ml-8 ml/sec 50 ml-8 ml/sec 100 ml -8 ml/ sec

Gravity Dispensing : Gravity mode for slow dispensing.

Rechargeable Battery : A removable lithium-ion battery (3.7 V/1400 mA; fully charged in 3 h) permits up to 8 h of continuous use.

Charging Options : Direct charging (with/without stand) via a micro-USB port with a standard 5-V adaptor.

Wall Stand : No

Self Standing : Yes (a complimentary stand is included in the packaging box).

Battery Status Indication : LED indication for low battery (red), charging (yellow), Yellow LED turns off when battery is fully charged.

Display Type : 1" monochrome OLED screen.

Stand : A complimentary stand is included in the packaging box.

Weight : 238 gm.

Sterility : Fully autoclavable at 121 °C and 15 psi for 10-15 min.

Filter : PTFE hydrophobic membrane filter (0.2 µm)

Application : Universal adapter for pipettes from 1-100 mL.
