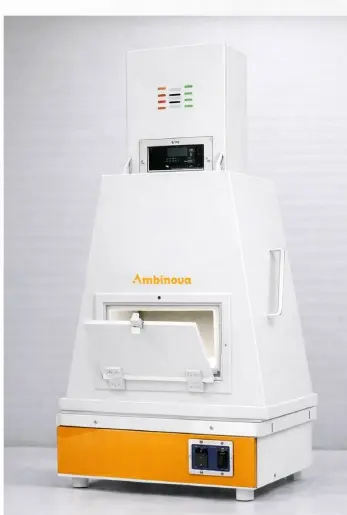

Gel Documentation System (AMBI-GelXB)

https://www.ambinova.in/web/image/product.template/797/image_1920?unique=96fd615

Model - Ambi-GelXB , HSN- 90275090

₹ 0.00 0.0 INR ₹ 0.00  Tax Excluded

₹ 3,63,626.00  Tax Excluded

This combination does not exist.


Brochure/Catalogue:

Gel Documentation System


One of the most user-friendly solutions for gel documentation and imaging applications, the GelXB universal platform delivers a cost-effective yet high performance digital analysis and visualization

system for modern laboratories. Designed to produce reproducible, high-resolution images, the GelXB ensures reliable gel documentation while offering flexible configuration options to suit varying budgets.

Laboratories can begin with a basic setup — including camera, transilluminator, and darkroom hood — and easily expand by adding a printer or advanced analysis software as requirements evolve.

Equipped with an 18-megapixel camera, the system connects seamlessly to a PC via USB, allowing convenient image capture and control through dedicated software. Ultraviolet transillumination is available in 254 nm, 312 nm, or 365 nm wavelengths, with a 17 × 17 cm filter size supporting maximum gel capture of the same dimensions.

The transilluminator can also operate independently, enabling direct gel observation when imaging is not required.

TECHNICAL SPECIFICATIONS


  • Model -  Ambi-GelXE
  • Software for Acquisition of Gels -  Included
  • Camera Resolution -  18 megapixels, Digital Sensor
  • Lens -  Autofocus, no user intervention required
  • Maximum Gel Size -  17x17 cm
  • Trans-illumination UV -  302-312 nm long-life tubes
  • Epi-White light illumination -  Included
  • Filter -  Band pass for EtBr
  • Software for Analysis of Gels -  Image editing and gel analysis software
