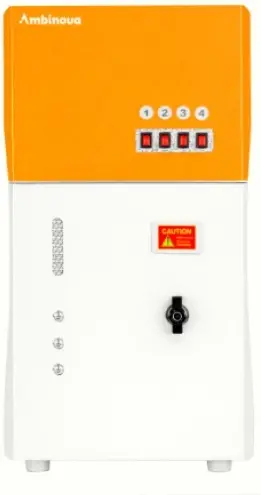

Ambi-GelXE Gel Documentation System
The GelXE gel documentation system offers a compact, modern design with easy operation and minimal user intervention. Preset focus and zoom ensure consistent imaging without manual adjustment. Equipped with a fixed 312 nm UV transilluminator and optional white and blue light trays, it supports documentation of DNA, RNA, and protein gels. An 18-megapixel camera connects to a PC via USB for convenient control, with a maximum gel capture size of 17 × 17 cm.
TECHNICAL SPECIFICATIONS
- Model - Ambi-GelXE
- Software for Acquisition of Gels - Included
- Camera Resolution - 18 megapixels, Digital Sensor
- Lens - Autofocus, no user intervention required
- Maximum Gel Size - 17x17 cm
- Trans-illumination UV - 302-312 nm long-life tubes
- Epi-White light illumination - Included
- Filter - Band pass for EtBr
- Software for Analysis of Gels - Image editing and gel analysis softwar
