Gel Documentation System (AMBI-GelXUP)

https://www.ambinova.in/web/image/product.template/1601/image_1920?unique=73bbe77

Model - AMBI-GelXUP , HSN - 90275090

₹ 0.00 0.0 INR ₹ 0.00  Tax Excluded

₹ 4,33,187.00  Tax Excluded

This combination does not exist.

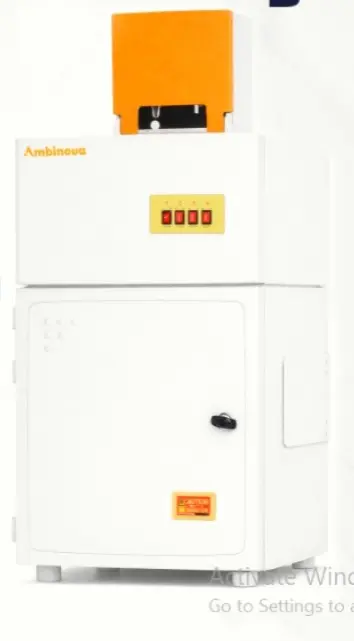

Ambi-GelXUP Gel Documentation System


The GelXUP gel documentation system combines advanced optics with a high-quality 24-megapixel camera to deliver reliable, high-performance fluorescent and colorimetric bio-imaging. The USB-connected camera allows easy PC control, while the light-tight cabinet includes a UV safety switch and roll-out transilluminator for safe and efficient operation. Featuring 312 nm UV transillumination, epi-white light illumination, wavelength-specific lighting options, and a 21 × 21 cm filter area, the system offers versatile imaging for DNA, protein gels, plates, membranes, and other laboratory applications — making it ideal for diagnostic labs, biotech facilities, and research environments.

Design features


  • Model -  Ambi-GelXUP
  • Software for Acquisition of Gels -  Included
  • Camera Resolution -   24 megapixel
  • Lens Focus -   Motorized Autofocus
  • Lens Iris and Aperture and Zoom -  Motorized Iris, 3x, Manual Zoom
  • Maximum Gel Size -   21x21 cm
  • Trans-illumination UV -   302-312 nm long-life Japanese tubes
  • Epi-White light illumination -  Included
  • Filter -  Band pass for EtBr
  • Software for Analysis of Gels -  Image editing and gel analysis software
