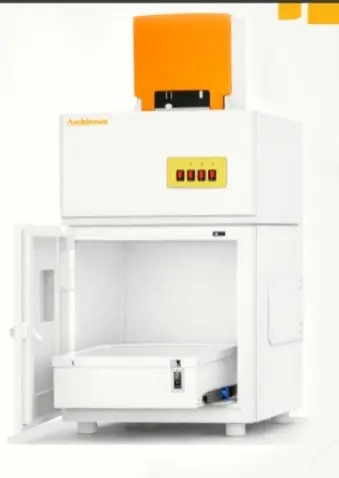

Gel Documentation System (AMBI-GelXUP Plus 616)

https://www.ambinova.in/web/image/product.template/1602/image_1920?unique=935f2cd

Model - Ambi-GELXUP Plus616 , HSN- 90275090

₹ 0.00 0.0 INR ₹ 0.00  Tax Excluded

₹ 6,54,231.00  Tax Excluded

This combination does not exist.

Gel Documentation System

Featuring high-resolution, ultra-sensitive 16-bit scientific-grade Sony cameras, available in 6.3 or 20 megapixel options, this system delivers exceptional image quality with extremely low noise and dynamic flat-field calibration. Integrated with a pre-focused C-mount zoom lens and housed within a protective enclosure, the camera setup ensures precision and durability. The system connects seamlessly to a PC or touchscreen interface, allowing convenient control and live-view image capture through dedicated software.

TECHNICAL SPECIFICATIONS

  • Model -  Ambi-GELXUP Plus616
  • Camera Native Resolution -  6.3MP
  • Lens Zoom, Focus -  Pre-calibrated focus for different gel sizes
  • Gray scale levels -  16-bit (65536 levels)
  • Maximum Gel Size -  21 x 26 cm
  • Trans-illumination UVB - 302-312 nm, 6x8W long life tubes
  • Epi-illumination White -  High brightness white LEDs
  • Filter-  4-position filter holder with Orange (F590) filter
  • Software for Acquisition of Gels-  Live view, control camera, illuminations, lens (if motorized model), zoom, focus, capture, save, protocol save and load, etc .
  • Software for Analysis of Gel -  Advanced Gel Analysis Software to automatically detect lanes, bands, calculate Molecular Weight, label, annotate, etc.
