High Speed Centrifuge, AMBI-HSC-18500

https://www.ambinova.in/web/image/product.template/2006/image_1920?unique=d27b5e4

Model - AMBI-HSC-18500 , HSN - 84211999

₹ 0.00 0.0 INR ₹ 0.00  Tax Excluded

₹ 0.00  Tax Excluded

This combination does not exist.

APPLICATIONS

Medical Care • Colleges & Universities • Bioengineering • Molecular Biology • Pharmaceutical factories • Research experiment • Agricultural science • Food testing • Environmental protection


KEY FEATURES

  • Microprocessor control with preset rotation speed, time, centrifuge force and different rotation speed
  • Optimized sound design for low noise levels (≤70 dB(A))
  • Steel metal case, stainless vessel and electronic security lock
  • Fast sample processing up to 18,500 rpm (23,900 ×g)
  • DC brushless variable-frequency motor; maintenance free
  • Automatic balance device, three-level shock absorption and fault alarm


INTUITIVE INTERFACE

  1. LCD display, liquid crystal display and key operation
  2. Many rotor and adapter specifications are available
  3. 10 speed levels for quick start/stop; combination keys adjust up-down speed
  4. Last running parameters are remembered automatically
  5. Speed, centrifugal force and time can be changed during centrifugation
  6. Speed step increased to 100 rpm for easier parameter setting


PRODUCT SPECIFICATIONS

MODEL

AMBI-HSC-18500

MAXIMUM CAPACITY

100ml ×6

MAX SPEED

18,500 rpm

MAX RCF

23,900 ×g

SPEED ACCURACY

±1%

TIME SETTING RANGE

0 min ~ 999 min ±1 min

ROTOR AVAILABLE

ROTOR CAPACITY

MAX SPEED

MAX RCF

NOTES

1.5/2ml ×12

18,500 r/min

23,900 ×g

Standard

1.5/2ml ×24

15,000 r/min

20,600 ×g

Optional

1.5/2ml ×48

11,000 r/min

12,840 ×g

Optional

5ml ×16

15,000 r/min

20,600 ×g

Optional

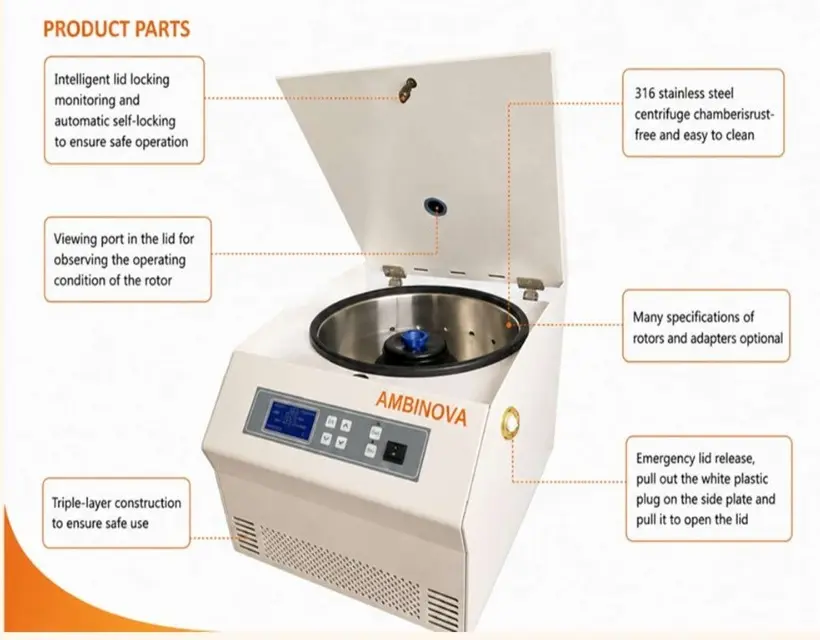

PRODUCT PARTS

INTUITIVE INTERFACE
  1. LCD display, Liquid crystal display, key operation
  2. There are many specifications of rotors and adapters optional.
  3. 10 speed levels to make the instruments start and stop quickly; Combination keys to adjust the up-down speed.
  4. Last running parameters also be remembered automatic
  5. The speed, centrifuge force, time can be changed by user during the centrifugation process
  6. The speed step is increased to 100 rpm, making it easier to set parameters;


TECHNICAL PARAMETERS

ModelMaximum Capacity (ml)Max Speed (rpm)Max RCF (xg)Speed AccuracyTime Setting Range
AMBI-HSC-18500100 ml × 61850023900±1%0 min–999 min ±1 min


FIXED-ANGLE ROTOR

Rotor capacity, speed and RCF options

ROTOR CAPACITY

MAX SPEED

RCF

NOTES

1.5/2ml ×12

18,500 r/min

23,900 ×g

Standard

1.5/2ml ×24

15,000 r/min

20,600 ×g

Optional

1.5/2ml ×48

11,000 r/min

12,840 ×g

Optional

5ml ×16

15,000 r/min

20,600 ×g

Optional

7ml ×12

14,000 r/min

16,370 ×g

Optional

10ml ×12

13,000 r/min

17,000 ×g

Optional

50ml ×6

12,000 r/min

16,000 ×g

Optional

15ml ×12

9,000 r/min

9,600 ×g

Optional

100ml ×4

9,000 r/min

9,600 ×g

Optional

100ml ×6

9,000 r/min

9,600 ×g

Optional
