DESCRIPTION

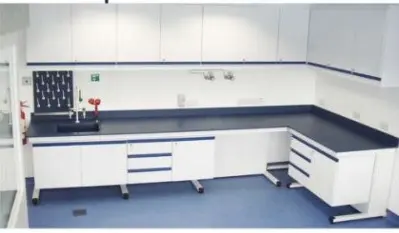

Our Wall Laboratory tables feature a modular design that enhances their versatility. Each module is engineered to facilitate straightforward disassembly, making it easy to reconfigure or transport the tables as needed.
C-FRAME SYSTЕМ
The suspended under-bench welded units must be supported by robust steel frames that fully bear the weight of the worktops. - Its exceptional strength, along with visually appealing end caps, should offer maximum flexibility and modularity when designing a layout. -The C-frame should be fabricated fromarectangular pipe with dimensions of 66mm x 33mm, possessing a thickness of 1.6 mm, and should lack a vertical front leg to maintain a clean appearance. This design will enhance knee and leg space, - - allowing for seamless lateral movement of the under-bench units within the bench run. The legs of the C-frame should come equipped with adjustable feet (with a tolerance ranging from -5mm to +20mm) to accommodate any unevenness in the flooring. - The tubular enclosed construction should prevent dust accumulation and inhibit the unwanted growth of bacteria and fungi. The drainage gradient must be properly adjusted along the entire length of the table and should include horizontal supports for the drainage systems. The structure should feature a removable back panel to allow for maintenance access along the full length of the table.
WELDED CABINETS
The cabinet features a welded body with a flush face design. It is constructed with square edges that are not sharp. The doors are fitted with a hinge assembly for smooth operation. Intermediate horizontal channels are included between the door and drawer. The drawer tray is made from a single piece, well-supported by a ball bearing channel system on both the left and right sides. The shutter door and drawer front are designed with a double wall construction for added durability. - Available configurations include 1 drawer and 1 shutter. - - - - - Made of GI sheet material. Thickness specifications: The left and right-side panels, shutter front, bottom panel, top front, and drawer separator, as wellas the alignment channel, are all 1mm thick. The removable back panel, shutter door, and top cover panel also have athickness of 1mm. 10. The finish consists of a powder coating made from pure epoxy, with a thickness ranging from 40 to 50 microns.
ELECTRICAL TRUNKING
The electrical trunking consists of a 1mm thick GI sheet. The entire GI material of the cabinet must undergo pre-treatment and be epoxy powder coated to enhance corrosion resistance. It boasts a high capacity for withstanding temperatures while providing outstanding electrical insulation properties.
SWITCHES & SOCKETS
Crafted from high-gloss, virgin-grade engineering thermoplastics, these products ensure a flawless surface. They provide outstanding electrical insulation characteristics. As a result, all electrical switches and sockets can manage higher currents (16amp) and withstand elevated temperatures. Front plates can be effortlessly replaced at any time without interfering with the wiring, allowing for quick and cost-effective adjustments to suit changes in the environment.
GRANITE
The granite should be jet black, with a thickness of 20 +/- 2 mm, featuring a chamfer of 4 x 4 mm on the top edges. The overhang on the storage cabinet must measure 25 mm at the front and 30 mm on the sides. For the granite backing, a neoprene mat with a thickness of 6 mm should be utilized.
Specifications :
Table Size (LXDX H)mm : 900 x 750 x 900
Cabinet Size (LXDX H)mm : 450 x 450 x 750
Cabinet Qty : 1
Electrical Switch Socket Qty : Switch-2 , Socket- 2
