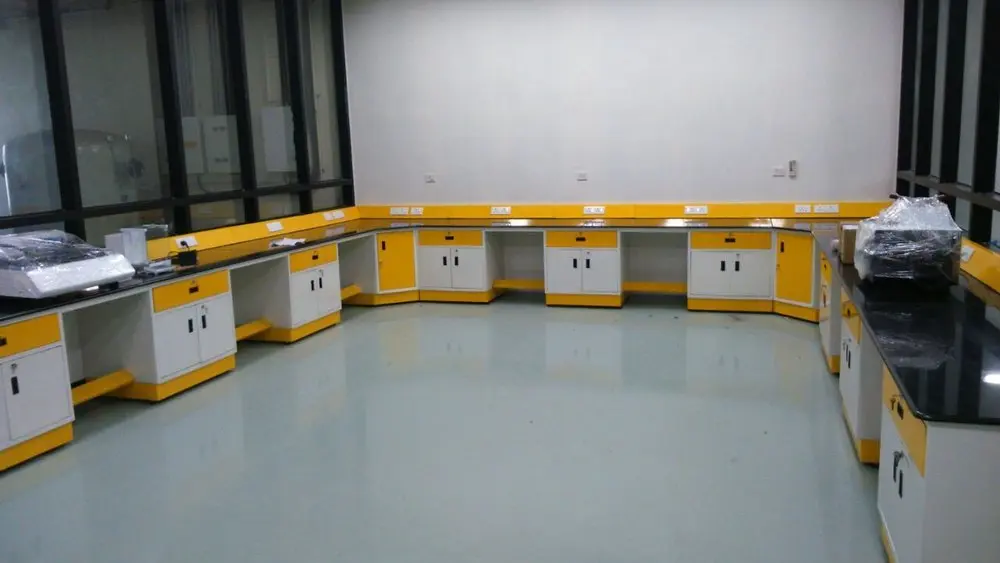

Side Wall Cabinet Without C Frame, AMBI-SWT-06WF79

https://ambinova-technologies-pvt-ltd4.odoo.com/web/image/product.template/1383/image_1920?unique=fa3c4f7

Model - AMBI-SWT-06WF79 , HSN - 94032010

₹ 0.00 0.0 INR ₹ 0.00  Tax Excluded

₹ 68,800.00  Tax Excluded

This combination does not exist.


Brochure/Catalogue:

Description


Our Wall Laboratory tables feature a modular design that enhances their versatility. Each module is engineered to facilitate straightforward disassembly, making it easy to reconfigure or transport the tables as needed.

Specification


Welded Cabinets
  • The cabinet features a welded body with a flush face design.
  • It is constructed with square edges that are not sharp.
  • The doors are fitted with a hinge assembly for smooth operation.
  • Intermediate horizontal channels are included between the door and drawer.
  • The drawer tray is made from a single piece, well-supported by a ball bearing channel system on both the left and right sides.
  • The shutter door and drawer front are designed with a double wall construction for added durability.
  • Available configurations include 1 drawer and 1 shutter.
  • Made of GI sheet material.
  • Thickness specifications:
  •    a. The left and right-side panels, shutter front, bottom panel, top front, and drawer separator, as well as the alignment channel, are all 1mm thick.
  •    b. The removable back panel, shutter door, and top cover panel also have a thickness of 1mm.
  • The finish consists of a powder coating made from pure epoxy, with a thickness ranging from 40 to 50 microns.



ELECTRICAL TRUNKING

  • The electrical trunking consists of a 1mm thick GI sheet.
  • The entire GI material of the cabinet must undergo pre-treatment and be epoxy powder coated to enhance corrosion resistance.
  • It boasts a high capacity for withstanding temperatures while providing outstanding electrical insulation properties.



SWITCHES & SOCKETS

  • Crafted from high-gloss, virgin-grade engineering thermoplastics, these products ensure a flawless surface.
  • They provide outstanding electrical insulation characteristics.
  • As a result, all electrical switches and sockets can manage higher currents (16amp) and withstand elevated temperatures.
  • Front plates can be effortlessly replaced at any time without interfering with the wiring, allowing for quick and cost-effective adjustments to suit changes in the environment.

GRANITE

  • The granite should be jet black, with a thickness of 20 +/- 2 mm, featuring a chamfer of 4 x 4 mm on the top edges. The overhang on the storage cabinet must measure 25 mm at the front and 30 mm on the sides.
  • For the granite backing, a neoprene mat with a thickness of 6 mm should be utilized.




ORDERING INFORMATION

  • Table Size (LXDXH)mm  :   1800 x 750 x 900
  • Cabinet Size (LXDX H) mm :   450 x 450 x 750
  • Cabinet Qty :  2
  • Electrical Switch Socket Qty :   Switch – 4 Socket - 4
